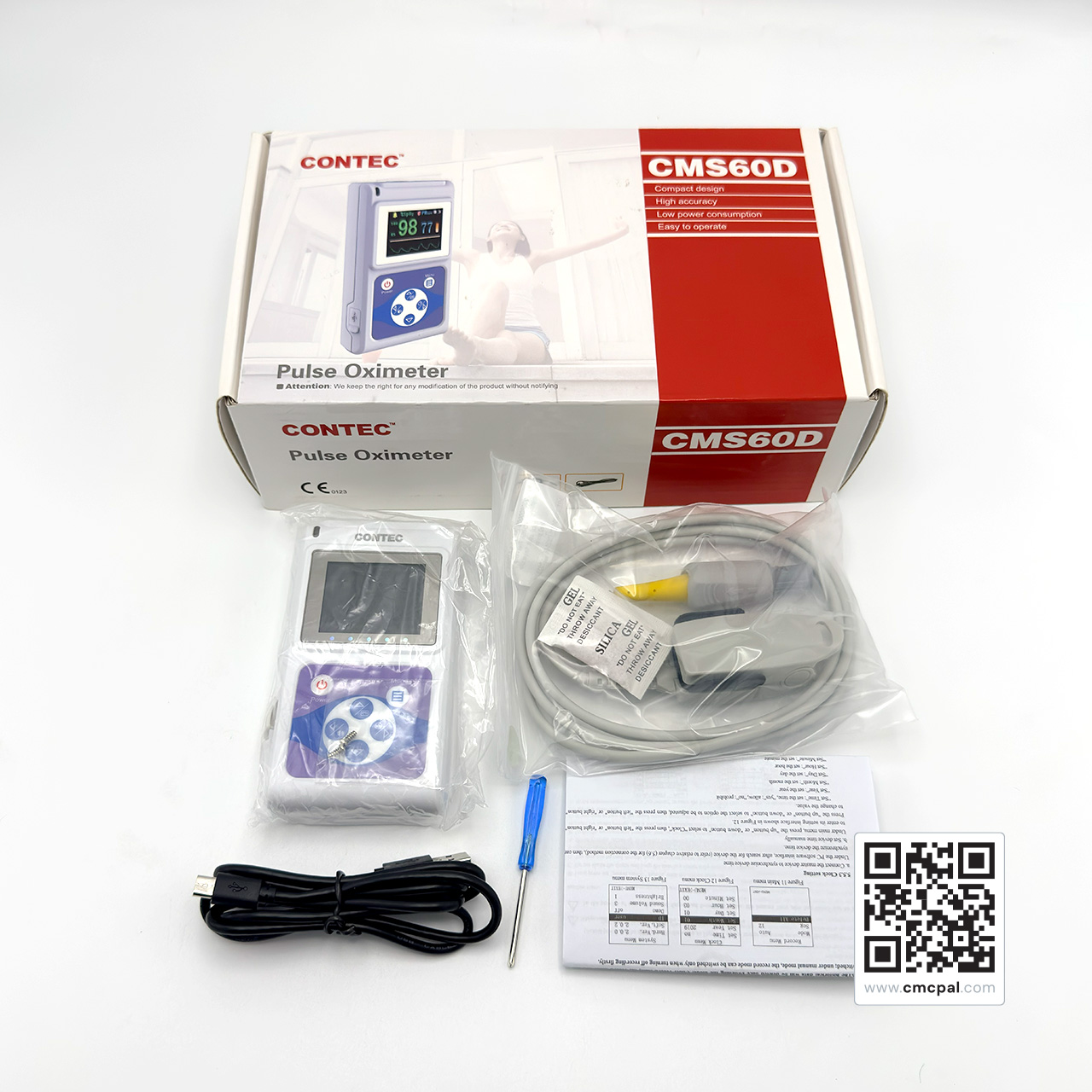

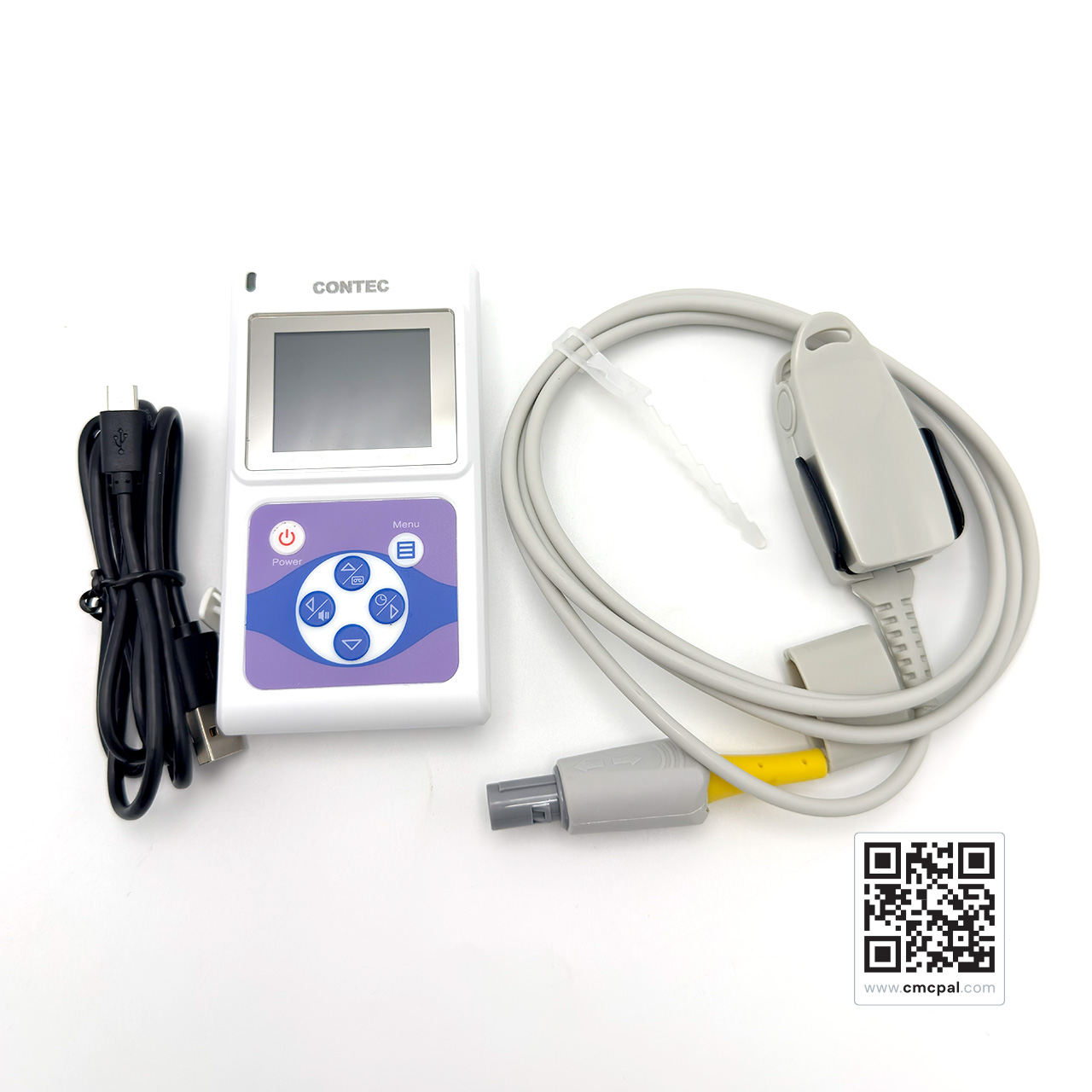

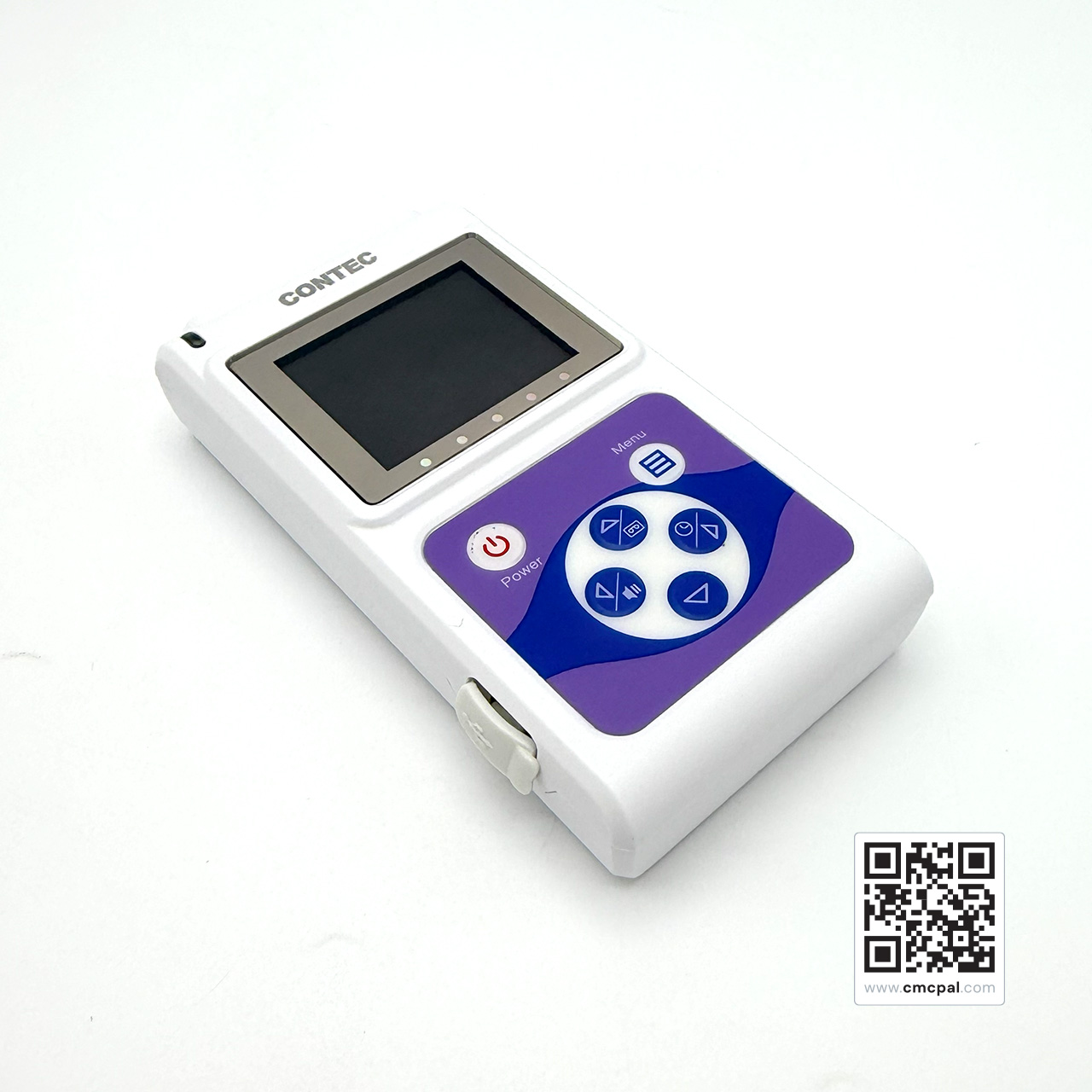

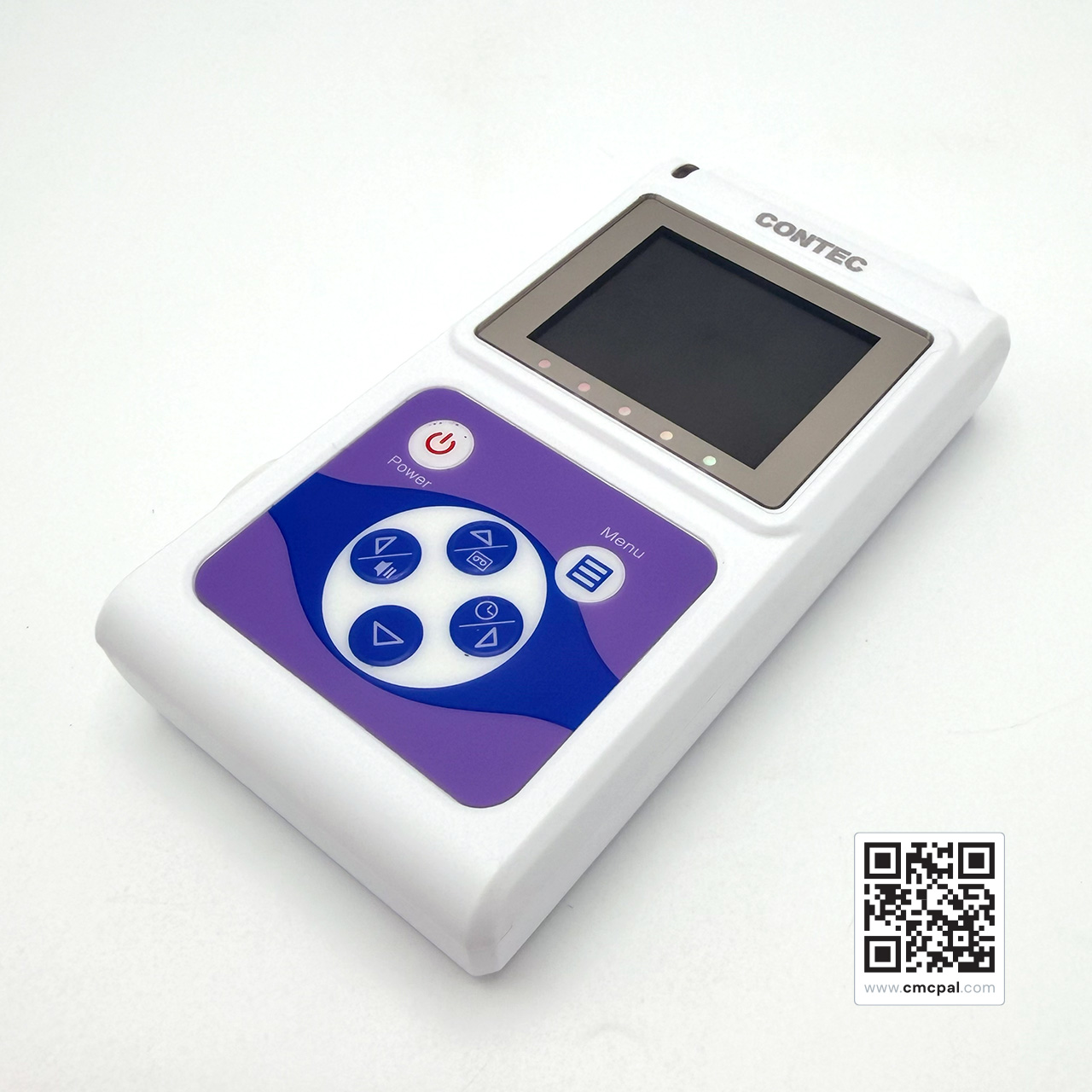

Hand-Held Pulse oximeter / CMS60D

Photoelectric Oxyhemoglobin Inspection Technology is adopted in accordance with Capacity Pulse Scanning & Recording Technology,the Pulse Oximeter can be used in measuring the pulse oxygen saturation and pulse rate through finger.The product is suitable for being used in family, hospital, oxygen bar, community healthcare, physical care in sports (It can be used before or after doing sports, and it is not recommended to use the device during the process of having sport) and etc.

Features :

■ Small in volume、light in weight and convenient in carrying

■ Operation of the product is simple ,low power consumption

■ Operation menu for the function setting

■ SpO2 value display

■ Pulse rate value display, bar graph display

■ Pulse waveform display

■ Screen brightness can be changed

■ Pulse rate sound indication

■ With review function

■ With clock function

■ With measured data overruns limits and low-voltage alarm function

■ Battery capacity indication

■ Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage ,and with alarm function

■ With SpO2 value and pulse rate value of storage, the storage data can be uploaded to computers

■ Real-time data can be transmitted to computers

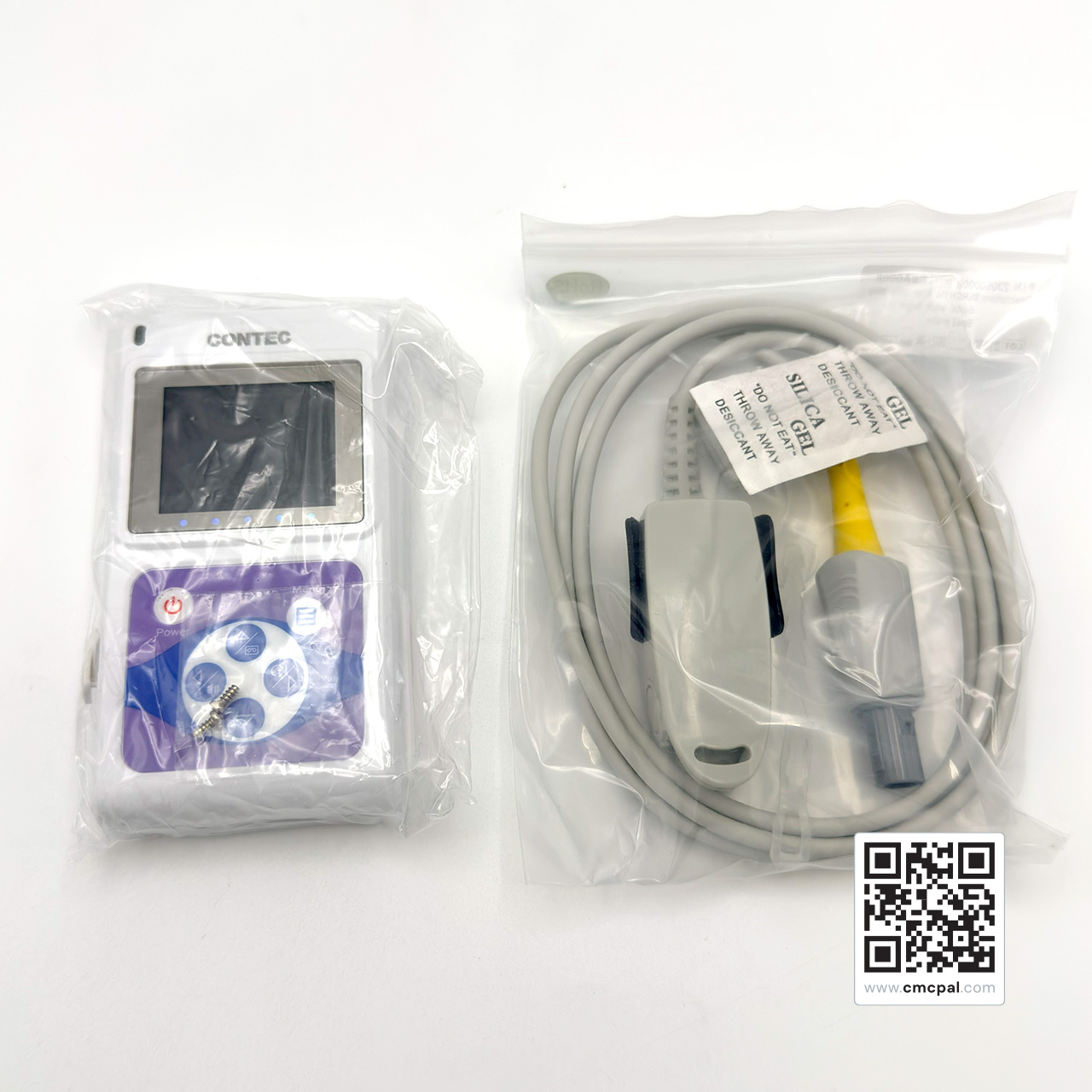

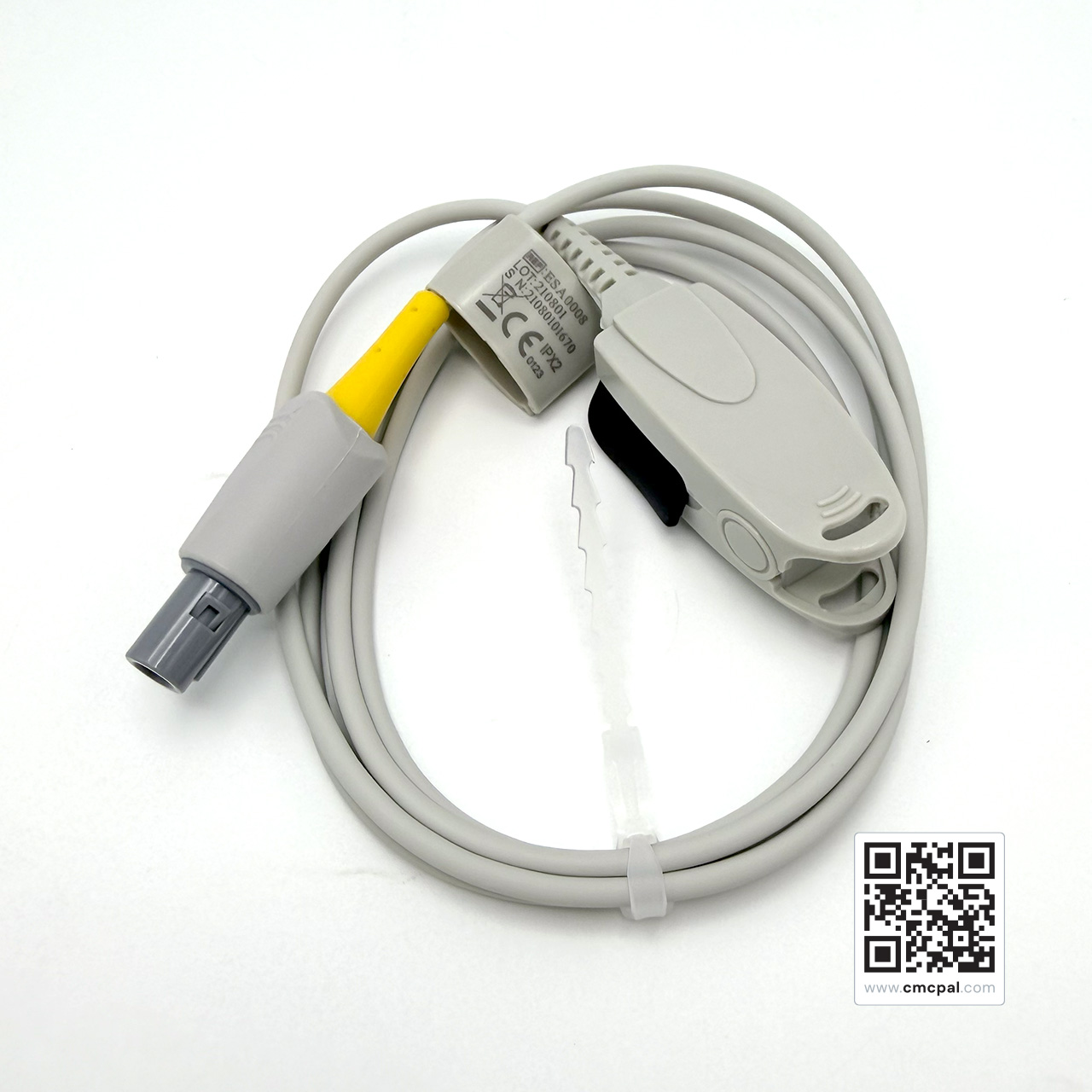

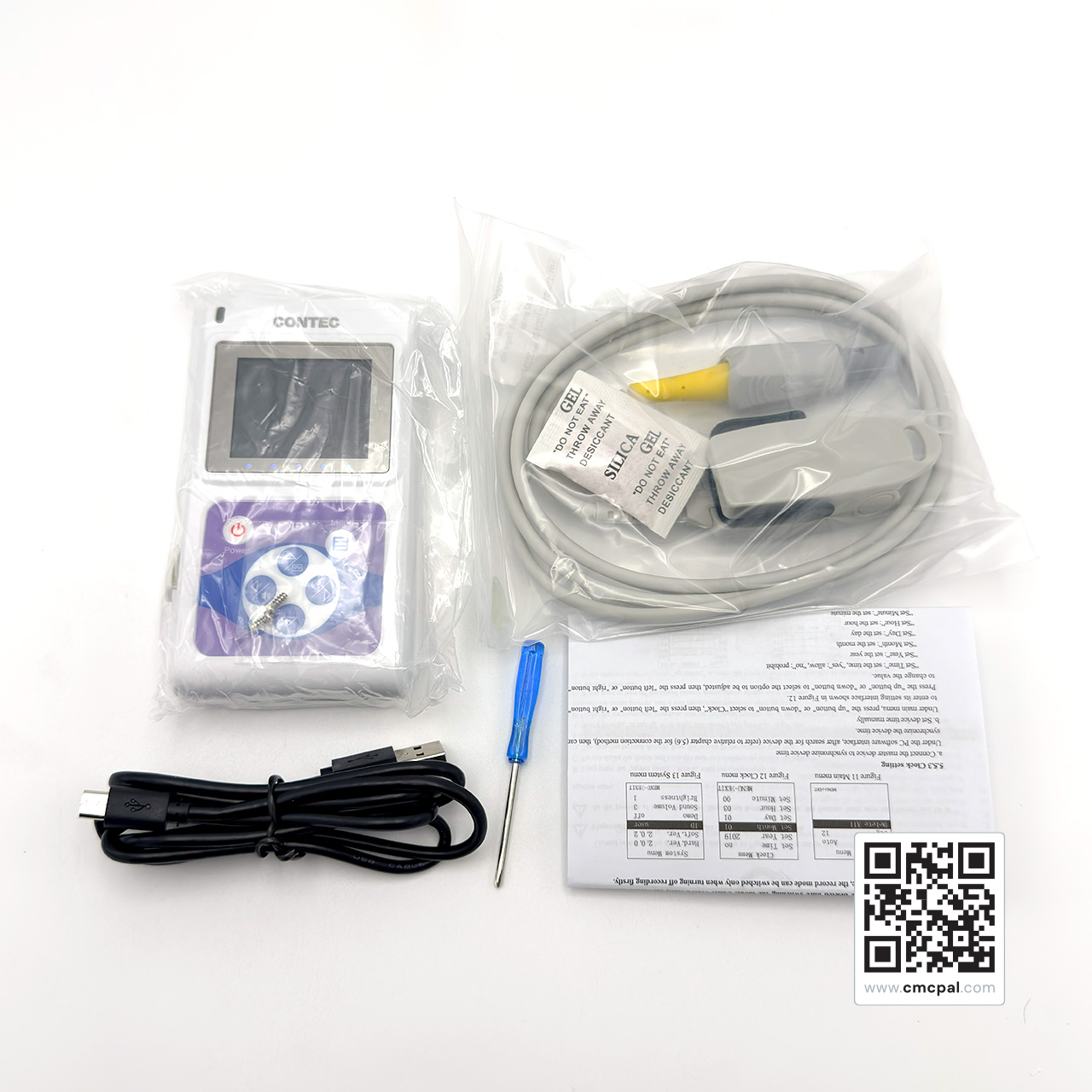

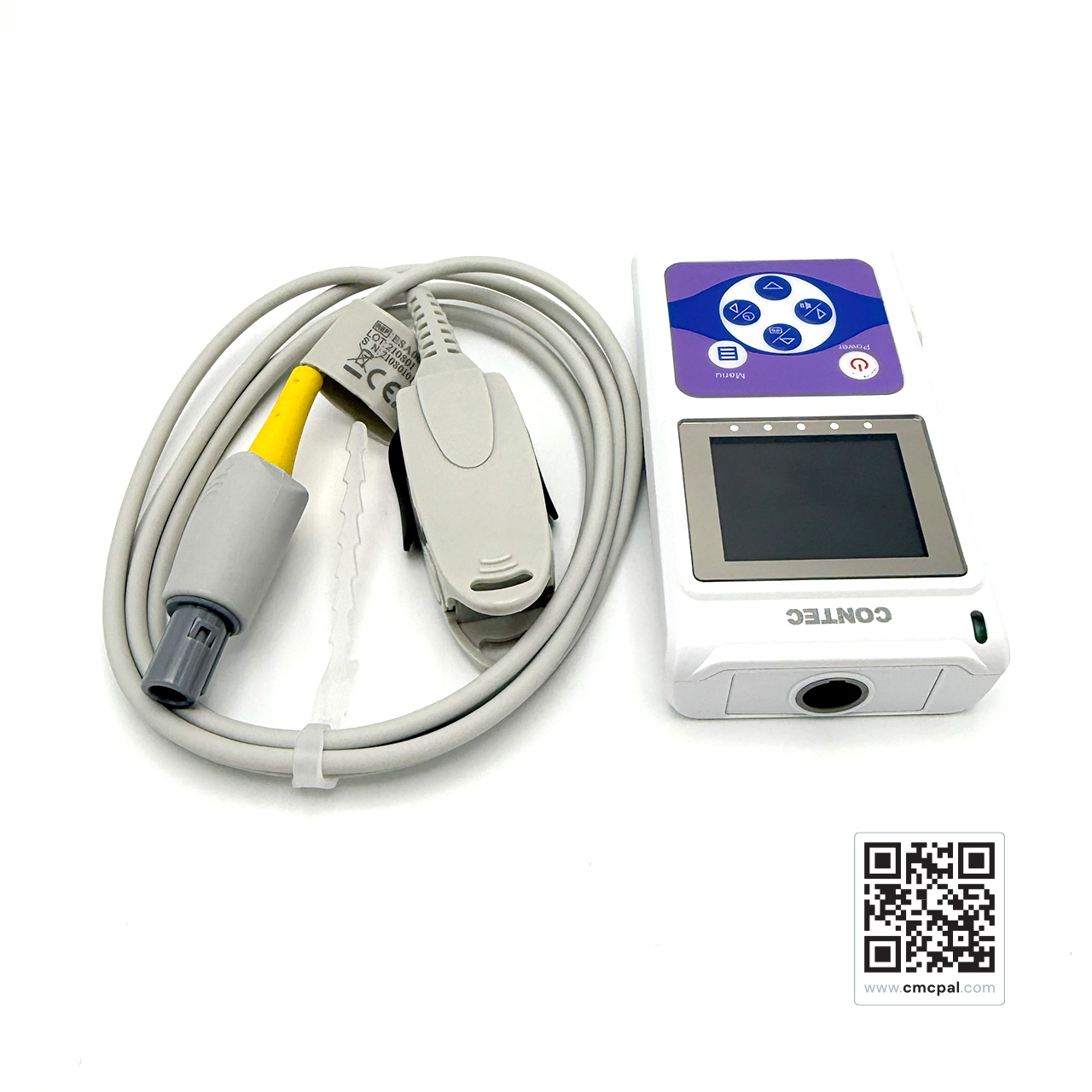

■ Connected with an external oximeter probe

■ Wireless communication function（CMS60DW）

Technical Specification :
| Safety Classification : Meets the requirement of IEC60601 series
| Type of Protection : Class II with internal electric power supply
| Degree of Protection : BF
| Dimensions : 92(W) x 82(H) x 22(D)mm
| Weight : 136g (with battery)
| Operation Temperature : 0°C – ±40°C
| Operation Humidity : 15% – 95%
| Storage Temperature : -20°C – ±60°C
| Storage Humidity : 10% – 95%
| Patient Range : Neonatal, Pediatric, and Adult
| SpO2 Range : 0 ~ 100%
| SpO2 Resolution : 1%
| SpO2 Accuracy : (±)2% (70% – 100%, Adult/Pediatric, non-motion) (±)3% (70% – 100%, Neonatal, non-motion) 0% – 69% unspecified
| Pulse Rate Range : 25 ~ 250 bpm
| Pulse Rate Resolution : 1bpm
| Pulse Rate Accuracy : (±)3 bpm (non-motion)
| Pulse Rate Alarm Range : 25 – 250bpm
| SpO2 Alarm Range : 0% – 100%
| Alarm Refreshing Rate : 1s
